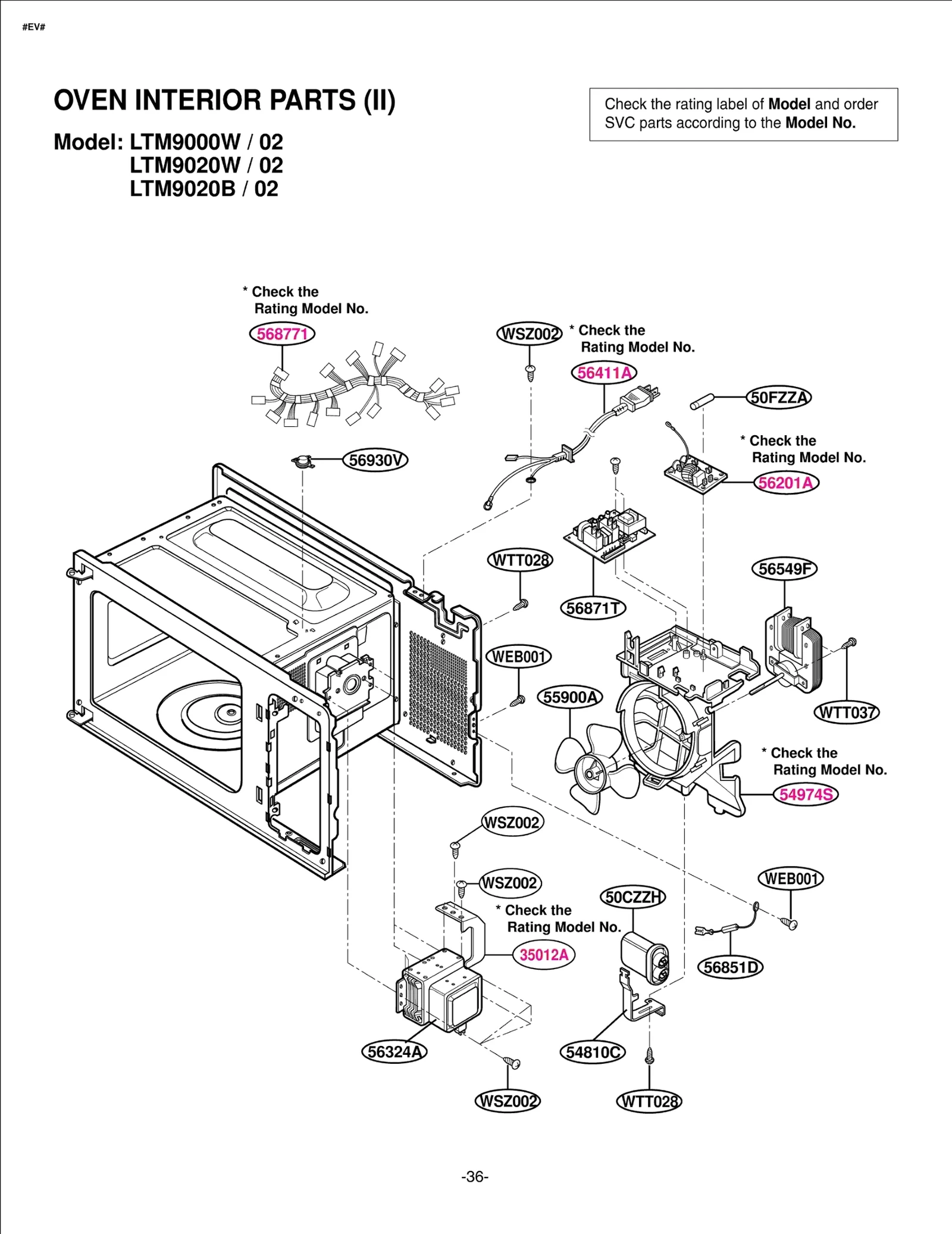

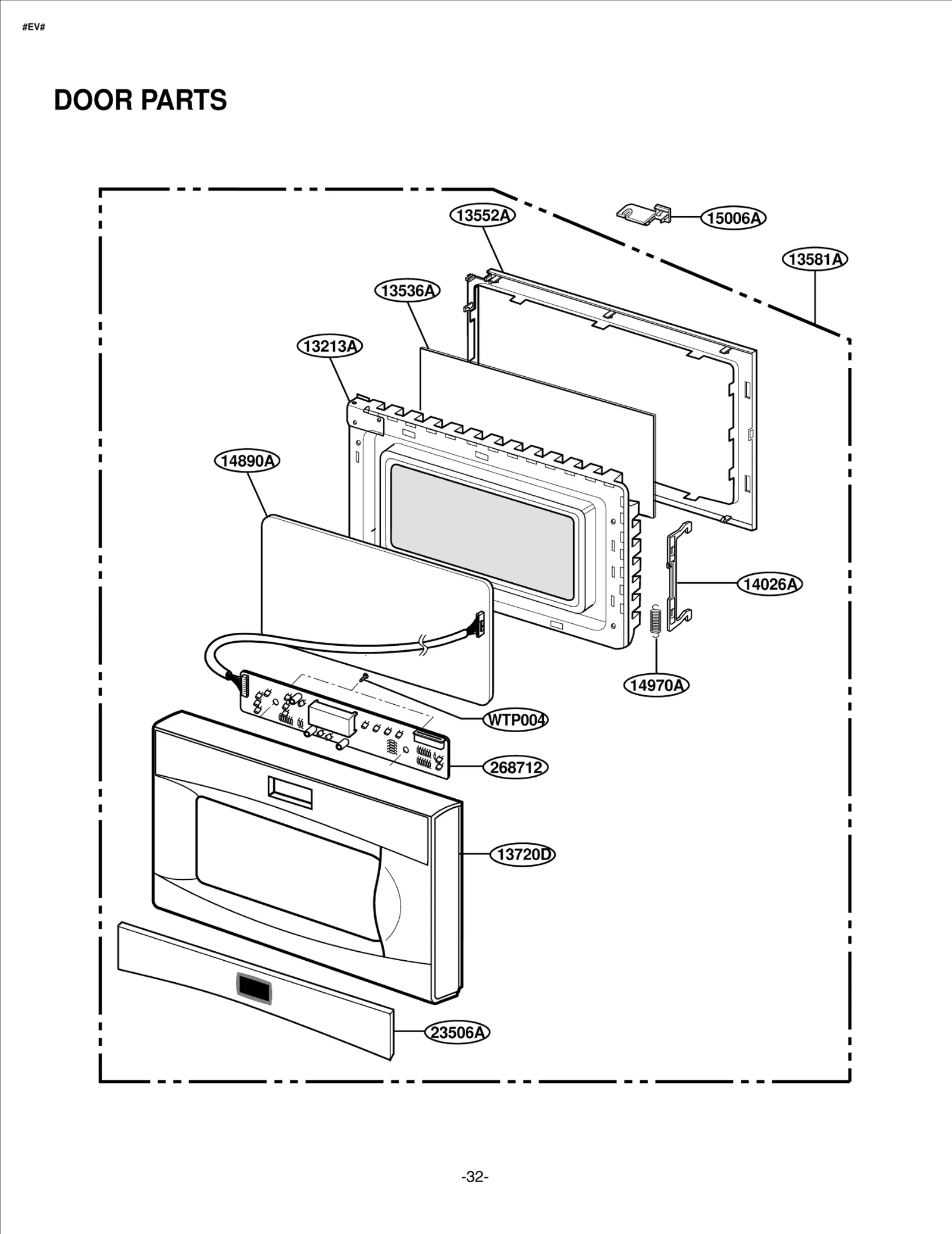

Model LG LTM9020B 01 MWO-DUAL – Common Parts & Diagrams

*01
MANUAL,OWNERS
MANUAL,OWNERS LGE 3828W5A4178 Contact Us For Availability
View on Model
*02
MANUAL,SERVICE
MANUAL,SERVICE LGE 3828W5S3850 Contact Us For Availability
View on Model
*10
BOX,COLOR
BOX,COLOR LGE 3890W3C353A Contact Us For Availability
View on Model

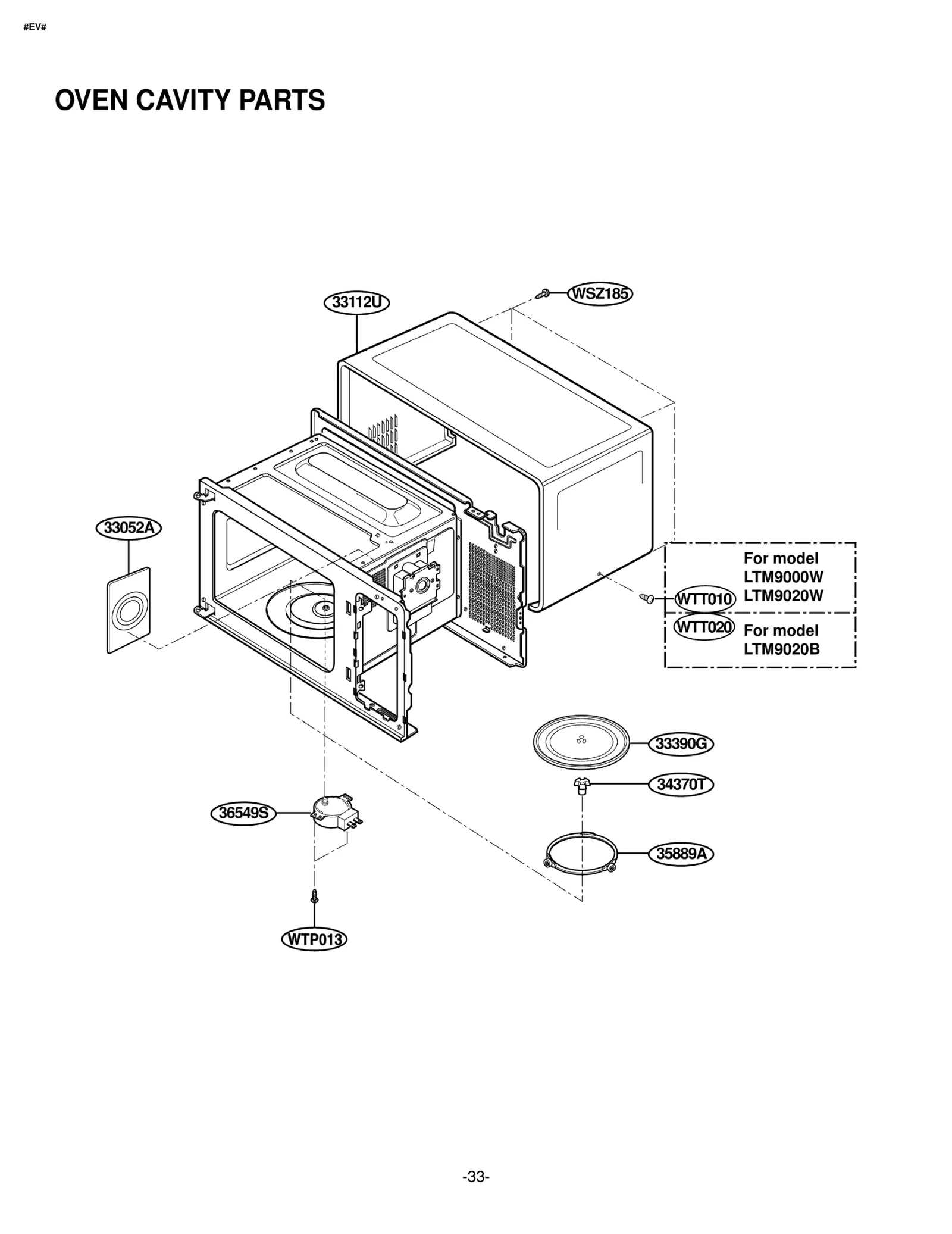

33390G
GLASS TRAY
GLASS TRAY LGE 1B71018G Contact Us For Availability
View on Model
34370T
SHAFT,TURN TABLE
SHAFT,TURN TABLE LGE 4370W1A006A Contact Us For Availability
View on Model
54810C
BRACKET,[CAPACITOR]
BRACKET,[CAPACITOR] LGE 4810W3C004A Contact Us For Availability
View on Model
54974S
GUIDE,SUCTION
GUIDE,SUCTION LGE 4974W0A016A Contact Us For Availability
View on Model
56170D
TRANSFORMER,HIGH VOLTAGE
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D075C Contact Us For Availability
View on Model
56411A
POWER CORD ASSEMBLY
POWER CORD ASSEMBLY LGE 6411W1A031M Contact Us For Availability
View on Model
56549F
MOTOR(CIRC),FAN
MOTOR(CIRC),FAN LGE 6549W1F005P Contact Us For Availability
View on Model
56871T
PWB(PCB) ASSEMBLY,SUB
PWB(PCB) ASSEMBLY,SUB LGE 6871W1S133D Contact Us For Availability
View on Model

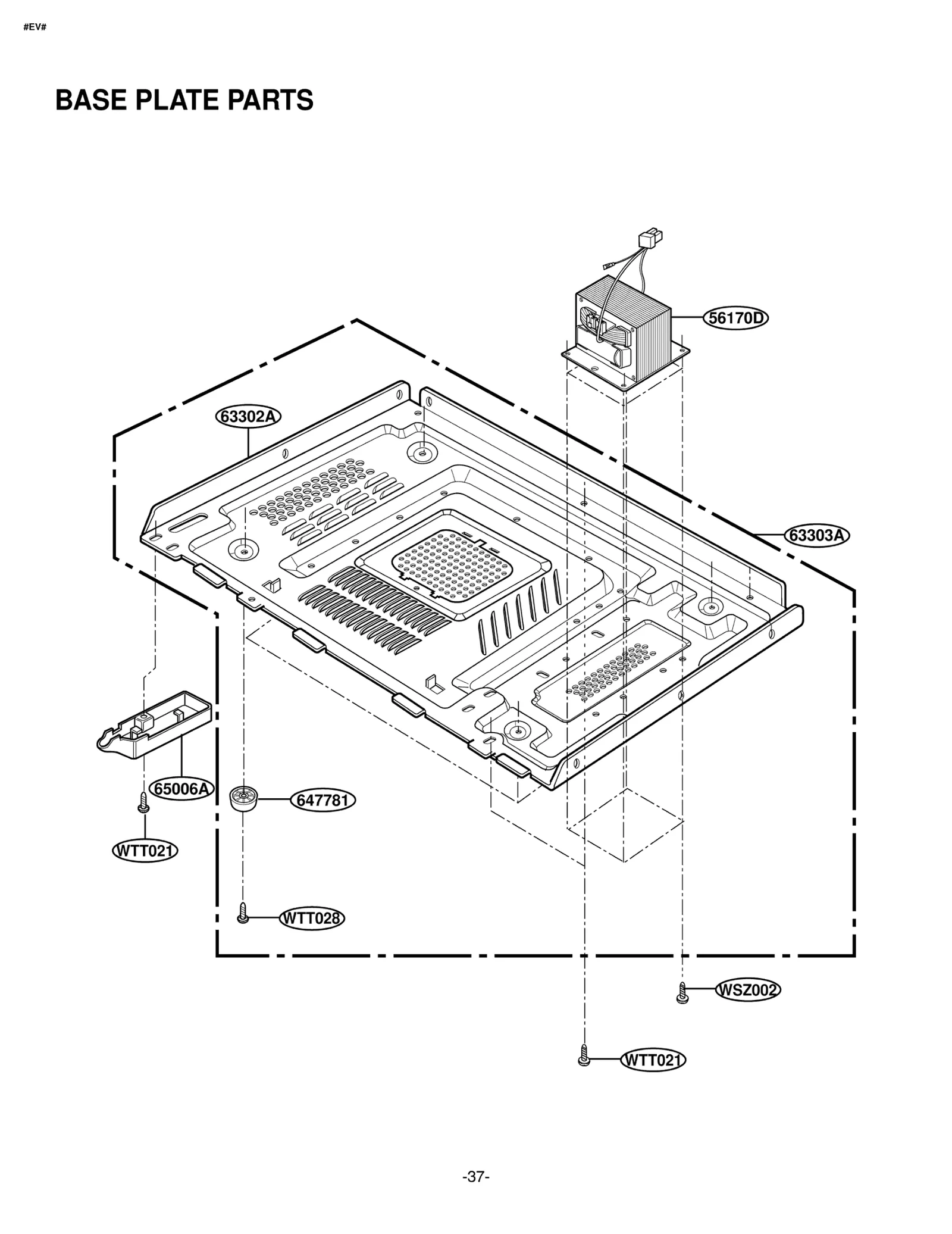

63302A
BASE PLATE
BASE PLATE LGE 3302W0A057A Contact Us For Availability
View on Model
63303A
BASE PLATE ASSEMBLY
BASE PLATE ASSEMBLY LGE 3303W0A020D Contact Us For Availability
View on Model
73213A
DOOR FRAME
DOOR FRAME LGE 3212W1A042A Contact Us For Availability
View on Model
73550D
COVER,DOOR PANEL
COVER,DOOR PANEL LGE 3550W1A192D Contact Us For Availability
View on Model
73551B
SERVICE PARTS
SERVICE PARTS LGE 383EW5A203K Contact Us For Availability
View on Model
73552A
CHOKE COVER
CHOKE COVER LGE 3552W1A066A Contact Us For Availability
View on Model
73572A
PANEL,TOASTER
PANEL,TOASTER LGE 3720W0C142D Contact Us For Availability
View on Model
73720D
COVER,TOASTER
COVER,TOASTER LGE 3720W0D309D Contact Us For Availability
View on Model
73740A
PROTECTOR (MECH)
PROTECTOR (MECH) LGE 3740W1A022A Contact Us For Availability
View on Model
74510L
LEVER
LEVER LGE 4510W1A020A Contact Us For Availability
View on Model
74970A
SPRING
SPRING LGE 4970W1A011A Contact Us For Availability
View on Model
75993M
TOASTER ASSEMBLY,MAIN
TOASTER ASSEMBLY,MAIN LGE 5993W1M005F Contact Us For Availability
View on Model
76322A
THERMISTOR,NTC
THERMISTOR,NTC LGE 2B72827L Contact Us For Availability
View on Model
568771
HARNESS
HARNESS LGE 6877W1A589E Contact Us For Availability
View on Model
647781
LEG ALL
LEG ALL LGE 4778W3A002A Contact Us For Availability
View on Model
768711
PWB(PCB) ASSEMBLY,SUB
PWB(PCB) ASSEMBLY,SUB LGE 6871W1S238C Contact Us For Availability
View on Model
C01
CAPACITOR ELECTROLYTIC KCN21C2
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4776H618 Contact Us For Availability
View on Model
C02
LGE 0CE3376H618
LGE 0CE3376H618 LGE 0CE3376H618 Contact Us For Availability
View on Model
C102
CAPACITOR,FIXED CERAMIC(HIGH D
CAPACITOR,FIXED CERAMIC(HIGH D LGE 0CK223DK948 Contact Us For Availability
View on Model
D09
DIODE,RECTIFIERS
DIODE,RECTIFIERS LGE 0DRSB00093A Contact Us For Availability
View on Model
D32
DIODE,SWITCHING
DIODE,SWITCHING LGE 0DSSB00083A Contact Us For Availability
View on Model
PT1
TRANSFORMER,POWER
TRANSFORMER,POWER LGE 6170W1G004A Contact Us For Availability
View on Model
R06
LGE 0RD0102G608
LGE 0RD0102G608 LGE 0RD0102G608 Contact Us For Availability
View on Model
R50
FIXED CARBON FILM 4.7K UG8*NSP
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
View on Model
RY1
RELAY OJ-SS-112LM MA-693M MA-6
RELAY OJ-SS-112LM MA-693M MA-6 LGE 6920W2D010A Contact Us For Availability
View on Model
